1954 Buick Special (My Second)

Bogframe

Member

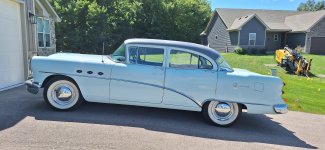

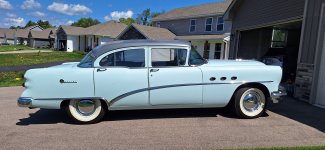

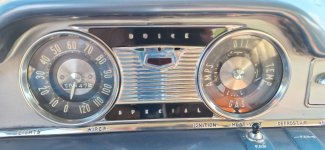

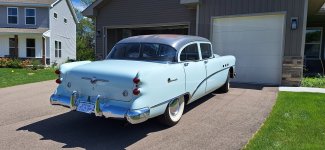

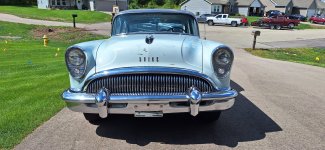

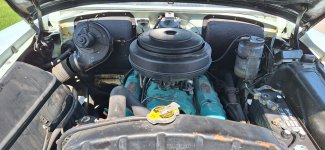

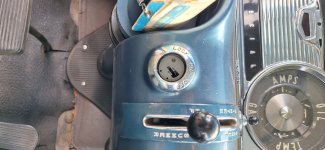

Hi, I'm Seth 66M and I just got delivery on my second 1954 Buick Special in 40 years. It's a birthday present to myself.The first was lost in an accident due to sabotage (long story). I bought this one from Classiccars.com and I have issues they neglected to tell me about like 2,445 more miles that advertised, small parts missing, wonky Dynaflow and a really rough idle. Cosmetically, the Chrome is nice, no pitting and all there, I may have to replace the carpets and most annoying, the ignition key interface is missing parts!


Attachments

  • 20260822_144731.jpg
    1.4 MB · Views: 7
  • 20260822_135431.jpg
    1.2 MB · Views: 6
  • 20260822_135540.jpg
    1.1 MB · Views: 6
  • 20260822_144310.jpg
    728 KB · Views: 6
  • 20260822_165531.jpg
    684.4 KB · Views: 6
  • 20260822_135515.jpg
    1.2 MB · Views: 7
  • 20260824_120617.jpg
    951.6 KB · Views: 4
Hi, I'm Seth 66M and I just got delivery on my second 1954 Buick Special in 40 years. It's a birthday present to myself.The first was lost in an accident due to sabotage (long story). I bought this one from Classiccars.com and I have issues they neglected to tell me about like 2,445 more miles that advertised, small parts missing, wonky Dynaflow and a really rough idle. Cosmetically, the Chrome is nice, no pitting and all there, I may have to replace the carpets and most annoying, the ignition key interface is missing parts!

Well, first, a hearty WELCOME!!

I agree, car looks nice.
A seller not telling EVERYTHING? Whoda thunk?;)

What is wonky with the transmission?


Ben

Well, first, a hearty WELCOME!!

I agree, car looks nice.
A seller not telling EVERYTHING? Whoda thunk?;)

What is wonky with the transmission?


Ben
You have to wrestle with the shifter to get it into drive. Could be fluid, could be something worse. As soon as I can get to the dipstick, I'll know more.

Transmission fluid turned out to be half a quart low and was still red. Being a Dynaflow, I know it can't be linkage, so as soon as I can find someone to fix the brake lights that don't work and the horn, I'll take it out for a shakedown cruise. For the record, here's the ad I bought it from:


Attachments

  • Ad 1.jpg
    Ad 1.jpg
    329.3 KB · Views: 7
Don't know how fluid would cause you to "wrestle". Oh, well...if it works, who am I to argue?

First of all - Have you found the Chassis Manual here for your car? There are schematics in there, troubleshooting instructions, it's pretty thorough.



If the brake lights aren't working - assuming everything is still in place and you have a voltmeter or test light - that's not TOO hard to troubleshoot.

Assuming the fuse is good (;)) and you've checked to make sure that the light bulbs aren't just burned out or the sockets corroded...

There should be a hydraulic pressure switch near the master cylinder - disclaimer: might need key on, I can't tell from the schematic if brakes are "always hot" - and one side of that switch should be 12v. Then when the brake is pressed, it should conduct 12v through the switch.

If you don't have 12v at the switch at all, go back to the fuse panel & start looking there. If you do have 12v coming in but the switch doesn't send 12v out, be happy, that's an easy fix. If you have 12v out of the switch, then start to sweat. Next place the brake signal goes is to the turn signal switch, which toggles the rear lights between turn and brake. THAT...gets ugly.

Hopefully it's something easy! Burned-out bulbs, corroded sockets or contacts...something simple.


Horn - MIGHT be easy to troubleshoot also. If you can find the horn relay (should be a little box on the left fender skirt, under the voltage regulator), there should be 2 heavier and 1 smaller wires connected to it. Jump the small wire to ground - if the horns blow, the horn circuit is OK, it's something in the "horn button" side. If it doesn't - post back, someone here will have an idea.

If it does honk - I *think* your car actually has the tan wire (the smaller wire) accessible where it goes into your steering column inside the car, and I think there's a connector there. If you ground that wire there, if it honks, you know the issue is with the button in the steering wheel. And you can always bypass the steering wheel with a pushbutton on the dash to get by - just ground the horn trigger and it should honk. If it doesn't, then there's a disconnect between the interior wiring and the horn relay trigger.

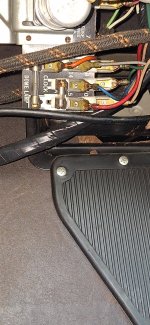

Oddly, the turn signal works, just not the brake light, as I saw when they were unloading the car. There was a 9amp fuse missing, I replaced it to no avail.


Attachments

  • 20260825_085942.jpg
    1.1 MB · Views: 5
